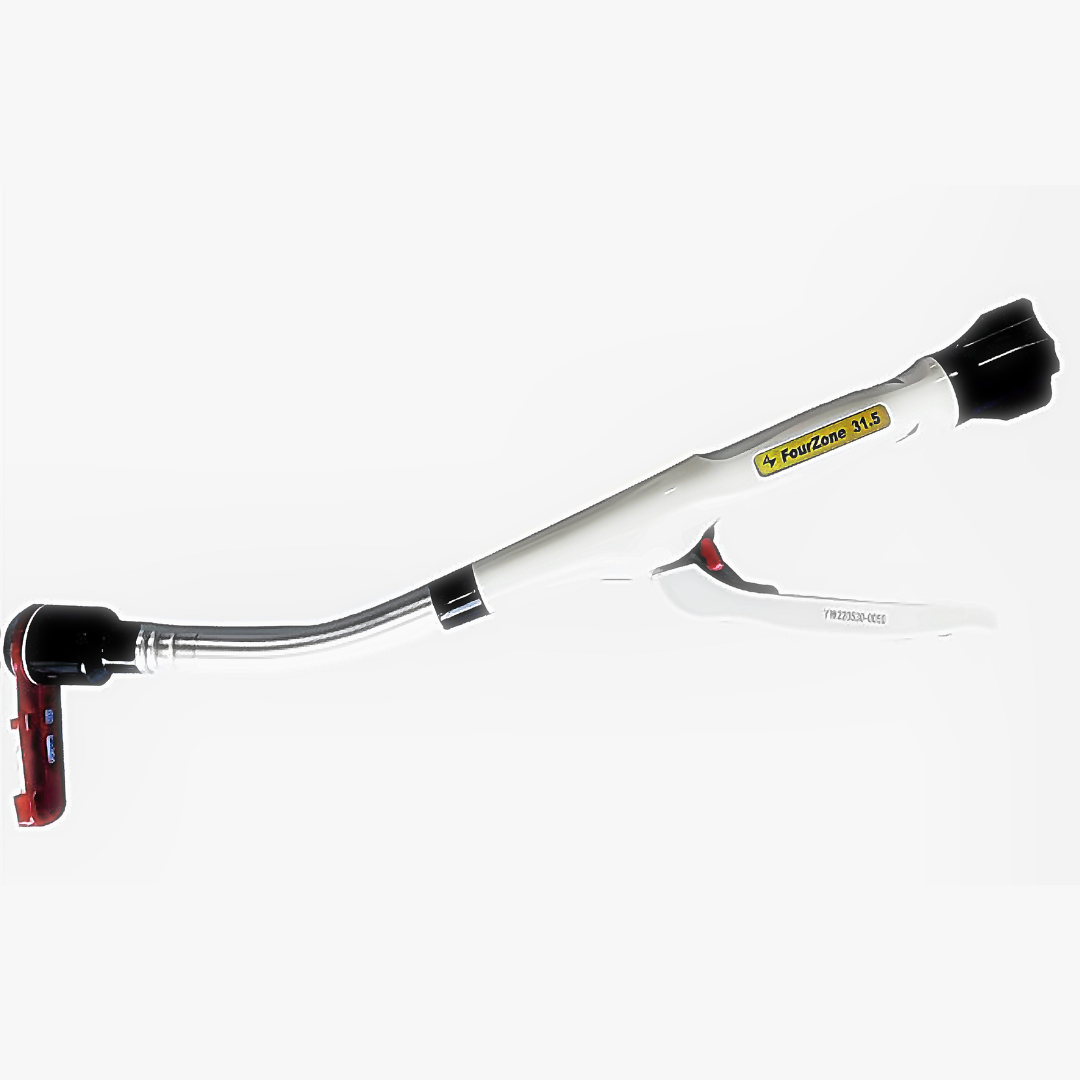

Disposable Circular Stapler With MAC Technology
C-Anazone
Over-compression is the quiet cause of a leaking
circular anastomosis. MAC — minimal anastomotic
clearance — sets a floor on the distance between
anvil and cartridge, so the tissue cannot be crushed
however firmly the instrument is closed.
A large diameter ratio between the cut and the staple
line keeps the lumen generous, which is the other
half of the stenosis problem. The anvil is formed in
one piece and is thin enough to pass without
fighting the bowel.
Features
MAC Technology
A minimum anvil-to-cartridge gap prevents tissue damage from over-pressure.
Large Diameter Ratio
Generous cutting diameter relative to the staple line, reducing anastomotic stenosis.

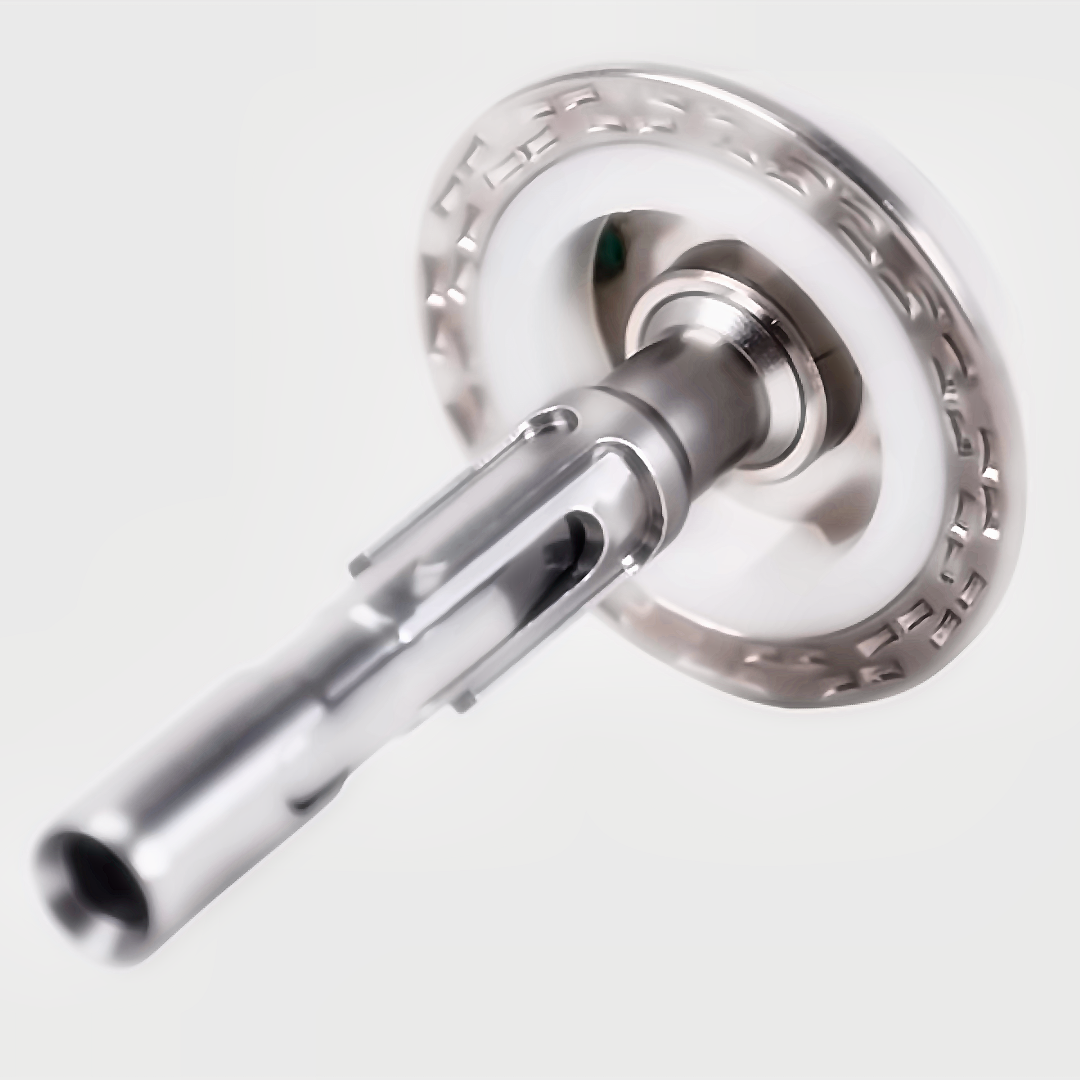

Integrally Formed Anvil
One-piece geometry so staple formation stays consistent around the circle.

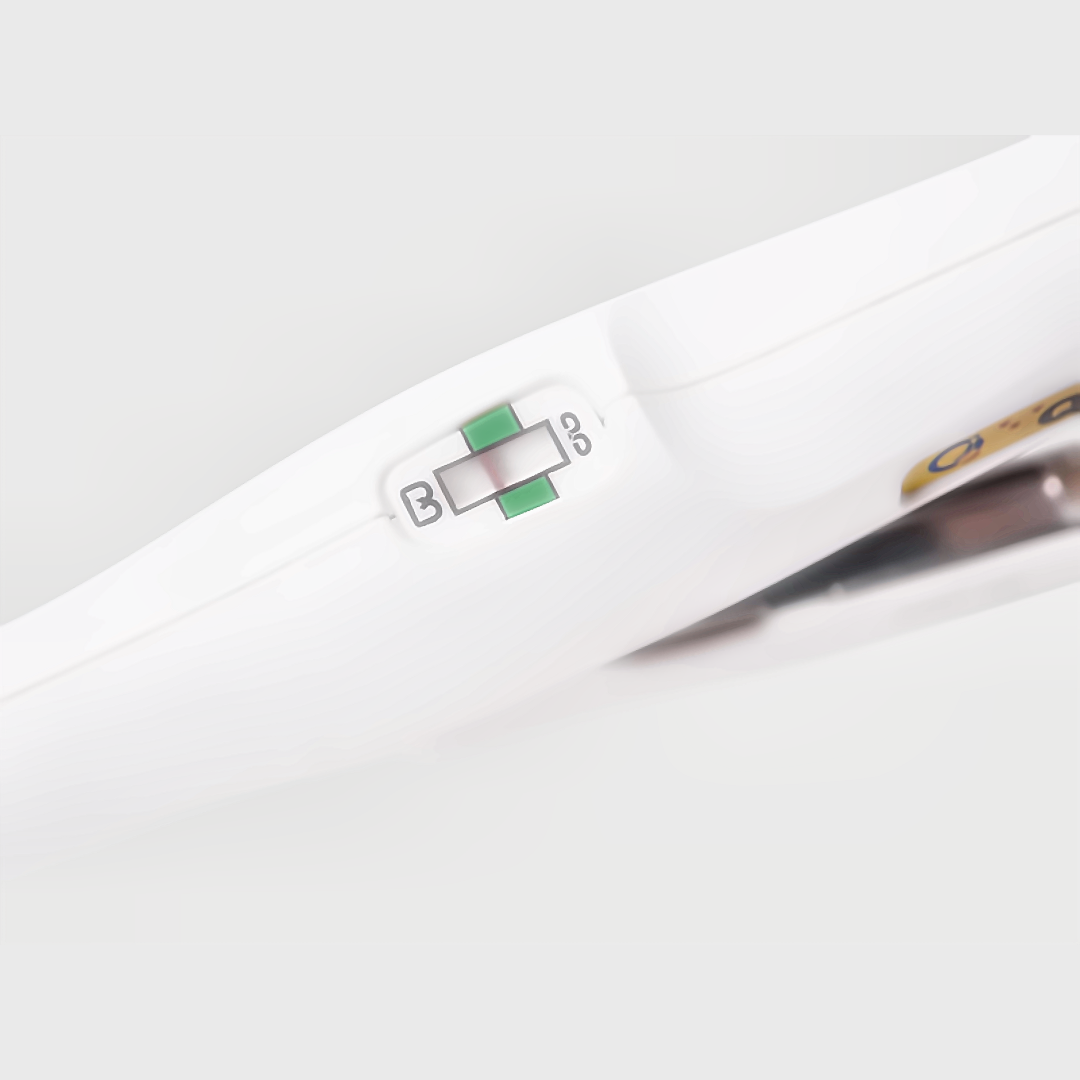

Wider Viewport
The tissue can actually be inspected before firing.
Specifications

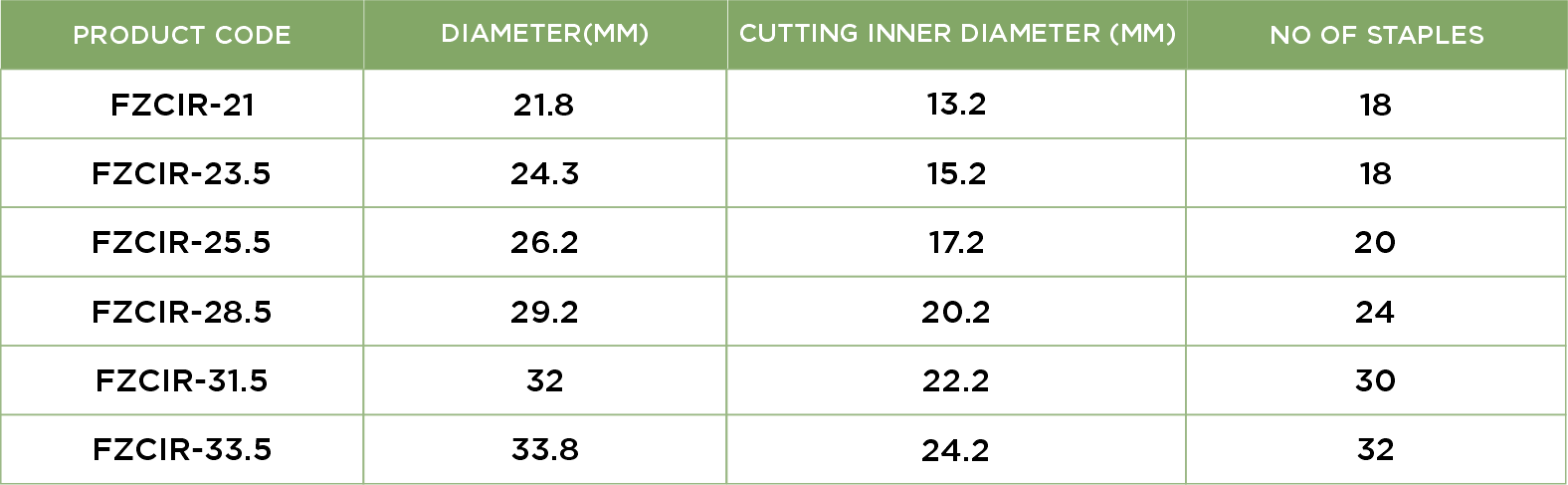

Ordering – Two-Row Circular Staplers
| Code | Outer Ø | Cutting Inner Ø | Staples |
|---|---|---|---|
| FZCIR-21 | 21.8 mm | 13.2 mm | 18 |
| FZCIR-23.5 | 24.3 mm | 15.2 mm | 18 |
| FZCIR-25.5 | 26.2 mm | 17.2 mm | 20 |
| FZCIR-28.5 | 29.2 mm | 20.2 mm | 24 |
| FZCIR-31.5 | 32.0 mm | 22.2 mm | 30 |
| FZCIR-33.5 | 33.8 mm | 24.2 mm | 32 |
For end-to-end, end-to-side and side-to-side anastomosis in digestive tract reconstruction – oesophagus, stomach and intestine.
